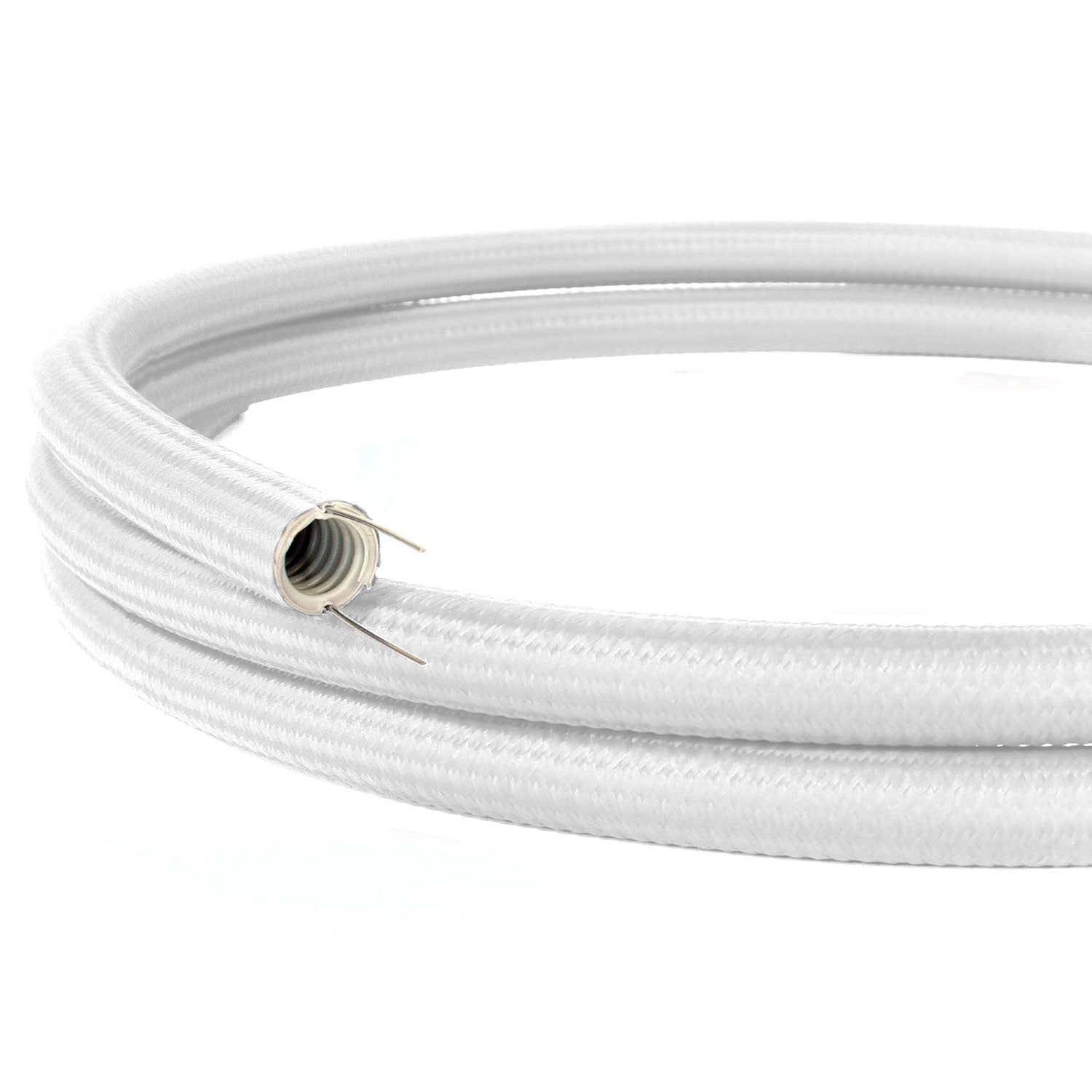

Creative-Tube flexible conduit, Rayon White RM01 fabric covering, diameter 20 mm

Classification No: 3321
Crushing resistance: >750N on 5 cm at 20°C
Schock resistance: (-15°C) after applying 2 kg mass hammer
Operating temperature: -5°C to +60°C
Resistance to flame propagation: self-estinguishing VO
Dielectric strength: < 2000V at 50Hz
Insulation resistance: >100 mega ohm
Diameter: 20 mm
Color: Rayon White RM01

According to the CEI 64-8 standard, to guarantee the cable removal, the maximum useful cross-section of cables inside the Creative-Tube can be 10 mm for a Tube up to 10 metres long. Up to 20 metres, the maximum thickness will be 9 mm.

Due to the shape of Creative-Tube, once positioned it is necessary to cut the pieces of metal filament that protrude from the limit of the pipe, before you can install the accessories or connect it to the junction box.
