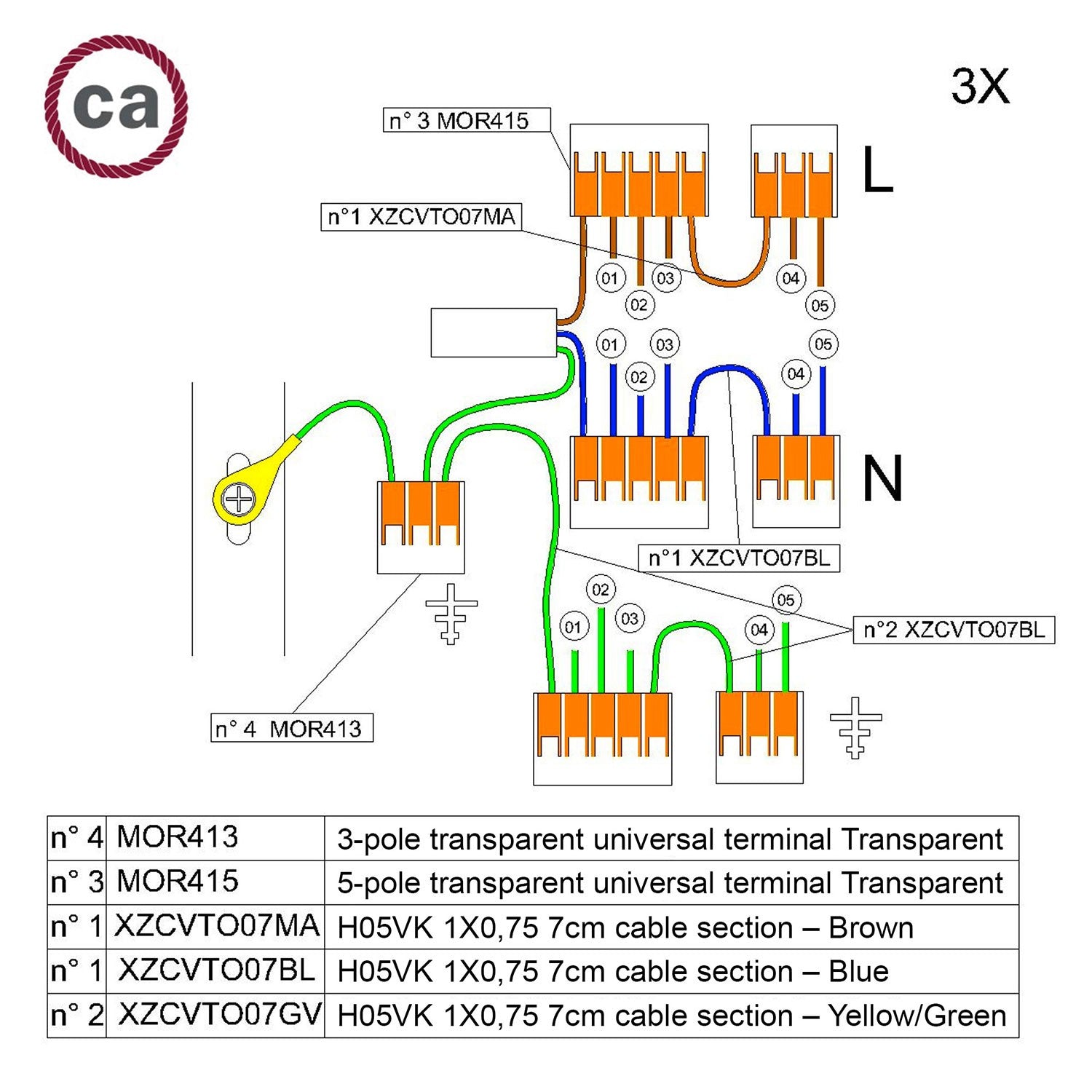

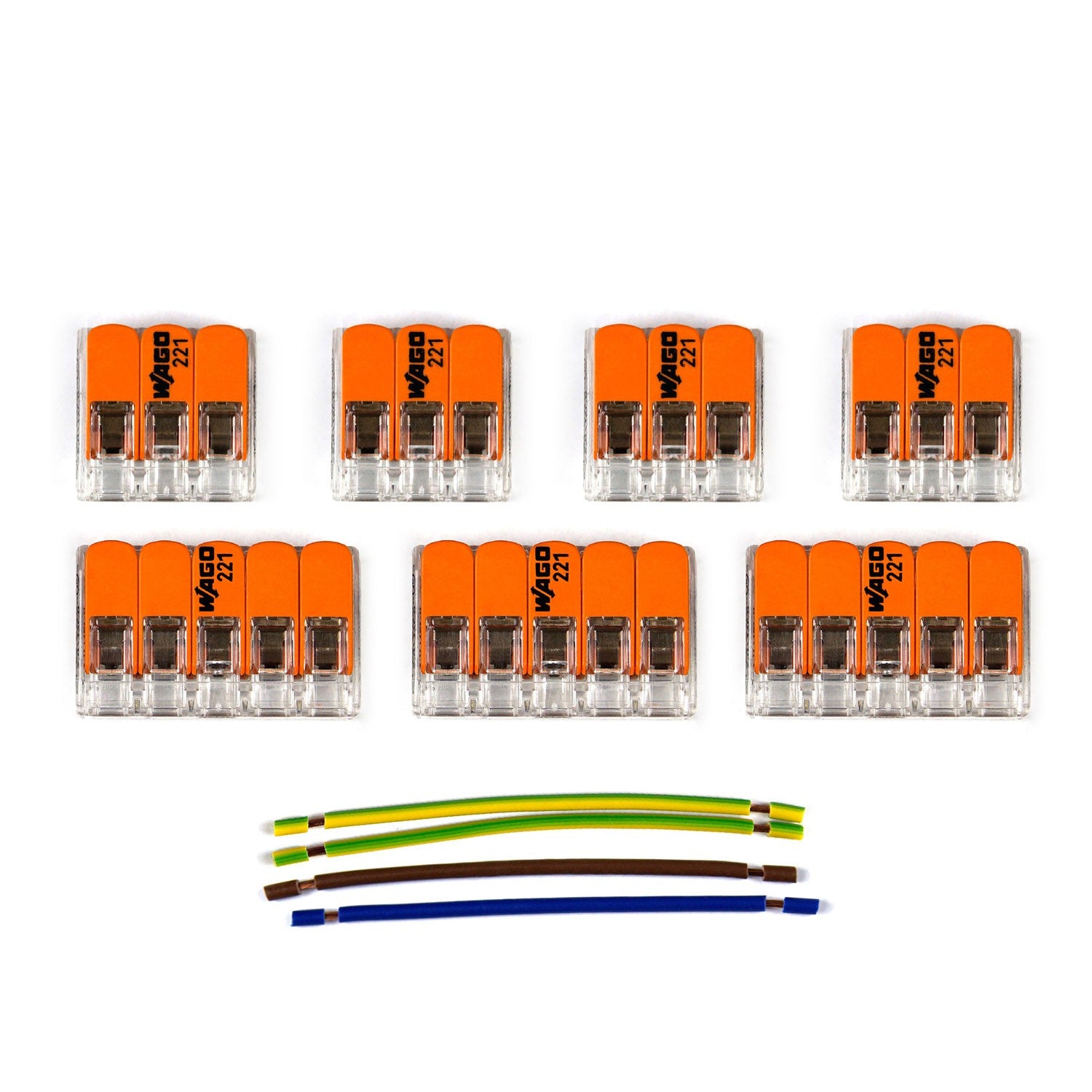

Nominal section: 3 x 0.2 - 4 mm² for rigid or flexible cables 3 connectors - Number of poles: 5 4 connectors - Number of poles: 3 Nominal voltage: 450 V Nominal current: 24 A Stripping length: 9mm (+1 mm) Maximum temperature permitted in the environment according to EN 60998: 85° C 1 brown unipolar cable section: 7 cm 1 blue unipolar cable section: 7 cm 2 green unipolar cable section: 7 cm
